Challenger CL4P7 Four Post Car Lift 7,000 lb Home Garage
Regular price$5,591.62
- Warehouse clearance – offer valid until July 10
- In stock, ready to ship
Challenger CL4P7 Four Post Car Lift 7,000 lb Home Garage

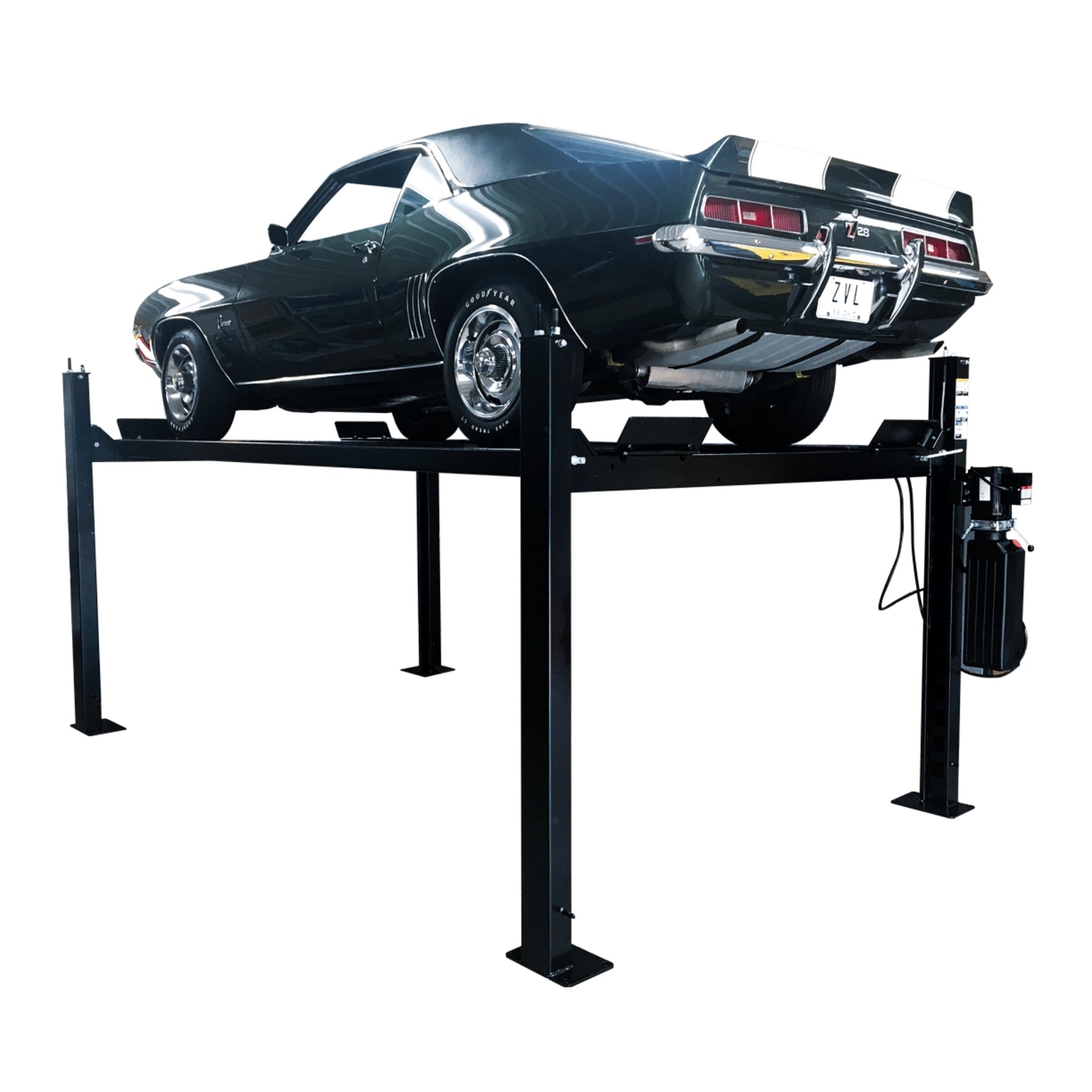

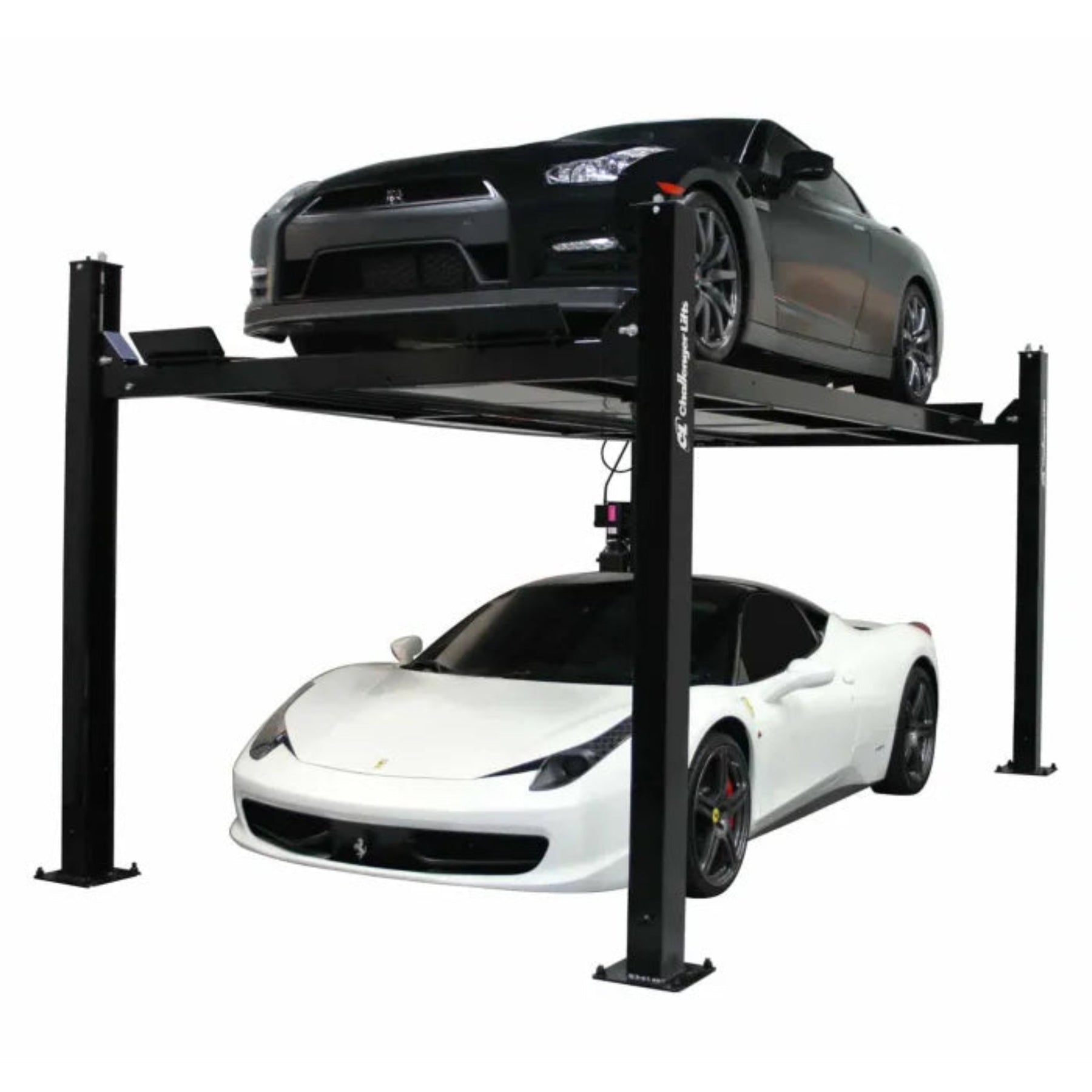

The Challenger CL4P7 is a 7,000 lb capacity four-post lift engineered for home garages and light-duty commercial use. It delivers 68.125" of rise height and 63" of storage clearance, allowing one vehicle to be stored below while parking another on top, or comfortable standing-height undercar service. The lift handles cars, trucks, and SUVs, with overall dimensions of 195.5" L x 100.5" W and a minimum bay size of just 10' x 20' for tight spaces.
The CL4P7 operates on standard 115V or 230V single-phase power and requires no air supply, simplifying installation. It is ALI/ETL certified whether bolted to concrete or left free-standing, allowing relocation as a garage layout changes.
The 20" wide commercial-grade formed runways sit 38" apart and include 36" aluminum approach ramps standard. A single-point manual lock release disengages all columns at once, adjustable lock ladders compensate for uneven floors, and a built-in runway rail system accepts optional rolling jacks and oil drip trays.
⚠
California Proposition 65 Warning
WARNING: this product can expose you to chemicals including styrene and vinyl chloride, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit www.p65warnings.ca.gov .
Features
- 7,000 lb lifting capacity for cars, trucks, and SUVs
- ALI/ETL certified (free-standing or bolt-down)
- Four-post design for storage and service
- 68.125" rise height
- 63" storage clearance for vehicle-over-vehicle parking
- Overall dimensions: 195.5" L × 100.5" W
- Minimum bay size: 10' × 20'
- 20" wide commercial-grade formed runways, 38" between runways
- 36" aluminum approach ramps included standard
- 115V or 230V single-phase power
- No air supply required
- Single-point manual lock release (all columns simultaneously)
- Adjustable lock ladders for uneven floors
- Built-in runway rail system for optional rolling jacks and oil drip trays
Specifications
| CAPACITY | |
|---|---|
| Lifting Capacity | 7,000 lb |
| Maximum Wheelbase | 141.5" |
| DIMENSIONS | |
| Length Overall | 195.5" |
| Width Overall | 100.5" |
| Height of Columns | 6' 7.5" |
| Inside Columns | 92.125" |
| Between Columns | 147.5" |
| Width of Runways | 20" |
| Width Between Runways | 38" |
| Height of Runways (Floor to Top) | 5.75" |
| Rise Height (Top of Runway at Top Position) | 68.125" |
| Clearance Height (Storage) | 63" |
| Crossbeam Clearance Height | 63" |
| Minimum Recommended Bay Size | 10' × 20' |
| ELECTRICAL | |
| Motor | 1HP / 2HP |
| Voltage (Single Phase Standard) | 115V / 230V |
| Speed of Rise (115V / 230V) | 120 / 60 seconds |
| Air Required | No |
| CERTIFICATION AND FINISH | |
| ALI/ETL Certified | Yes |
| Finish | Powder Coat |
| Colors Available | Black |
What's Included
- Complete four post lift structure with columns, runways, and crossbeams
- 36" aluminum approach ramps (standard)
- Hydraulic power unit with motor
- Single-point manual lock release system
- Adjustable lock ladders
- Hardware and fasteners for assembly
- Installation and operation manual
